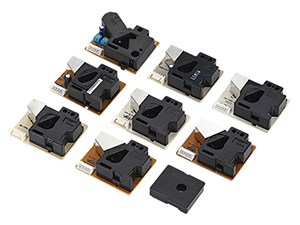

IR dust sensor detects the dust particle concentration in air by using optical sensing method. An infrared light emitting diode (IR LED) and a photo-sensor are optically arranged in this device. The photo-sensor detects the reflected IR LED light by dust particles in air. This dust sensor can detect the small particle matter(PM2.5/10) like cigarette smoke and it can distinguish small particle matter like smoke from large house dust by pulse pattern of signal output. This sensor has the interface of PWM, UART protocol.
This product is globally available for your Air care applications.
| Model | Size(mm) | Weight(g) | Supply Voltage (V) | Signal Output | Dust Concentration | Uniformity(%) | Characteristic | Data Sheet |
|---|---|---|---|---|---|---|---|---|
| SM-PWM-01A | 59×46×18 | 23 | 5 | PWM P1 (Small Particle) P2 (Large Particle) |
0~800,000 (pcs/ft 3) |
±30 | MICOM CAL. Heart beat(User option) 1sec. Average output (v1.1) Real-time output (v1.2) |
Inquiry
|
| SM-ND-02A | 59×46×18 | 23 | 5 | PWM UART |
0~800,000 (pcs/ft 3) |
±15 | UART mode High sensitivity |
Inquiry
|
| SM-PWM-03A | 59×45×18 | 23 | 5 | PWM P1 (Small Particle) P2 (Large Particle) |
0~800,000 (pcs/ft 3) |
±15 | MICOM CAL. Heart beat (User option) 1sec. Average output |
Inquiry
|
| SM-PWM-03A-02C | 59×45×18 | 25 | 5 | PWM (Dust) Analog (Gas) |
0~800,000 (pcs/ft 3) |
±15 | Heart beat (User option) Lens cleaning hole TVOC gas sensor |
Inquiry
|
| SM-ND-06A | 59×45×18 | 23 | 5 | PWM UART I 2C (Option) |
0~800,000 (pcs/m 3) |
±15 | UART mode Heartbeat (User option) |
Inquiry
|
| SM-ND-06A-G | 59×45×18 | 25 | 5 | PWM/UART I 2C (Option) Analog (Gas) |
0~800,000 (pcs/m 3) |
±15 | Numeric Display Support with TVOC gas sensor |
Inquiry
|
| SM-ND-08A | 43.5×34×19 | 20 | 5 | PWM UART I 2C (Option) |
0~800,000 (pcs/m 3) |
±15 | Compact size Stable output |
Inquiry
|
| SM-ND-09A | 46×34×18.5 | 20 | 5 | UART | 0~800,000 (pcs/m 3) |
±15 | Compact size None heat-resistor |
Inquiry
|
| SM-ND-10A | 59×45×18 | 23 | 5 | PWM UART I 2C (Option) |
0~800,000 (pcs/m 3) |
±15 | Heartbeat (User option) Inside Noise-shield |
Inquiry
|

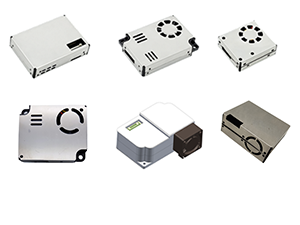

Laser particle sensor detects the dust particle concentration in air by using optical sensing method. A laser diode (LASER) and a photo-sensor are optically arranged in this device. The photo-sensor detects the scattered LASER light by particulate matter(PM) in air. The photo-sensor counts the number of particles and measures the size of particle. MCU calculates the concentration of particle and size. This laser particle sensor can measure PM1, PM2.5 and PM10.
This product is globally available for your Air care applications.
| Model | Size (mm) |
Weight (g) |
Supply Voltage (V) |
Signal Output |
Dust Concentration (㎍/㎥) |
Uniformity (㎍)
Under 100㎍/㎥ |
Characteristic | Data Sheet |
|---|---|---|---|---|---|---|---|---|
| SM-LS-01A (N/F/S) |
49×35×12 | 24 | 5 | 3.3V TTL UART I 2C (option) |
0~1,000 | ±10 | PM1.0/2.5/5/10 Numeric Display Long lifetime |
Inquiry
|
| SM-LS-03A | 49×35×12 | 24 | 5 | 3.3V TTL UART I 2C (option) |
0~1,000 | ±10 | PM1.0/2.5/5/10 Numeric Display Long lifetime |
Inquiry
|
| SM-LS-03P | 50×43×21 | 37 | 5 | 3.3V TTL UART I 2C (option) |
0~1,000 | ±10 | PM1.0/2.5/5/10 Numeric Display Long lifetime |
Inquiry
|
| SM-LS-03B | 48×37×12 | 27 | 5 | 3.3V TTL UART I 2C (option) |
0~1,000 | ±10 | PM1.0/2.5/5/10 Numeric Display Long lifetime |
Inquiry
|
| SM-LS-04A | 50×43×21 | 40 | 5 | 3.3V TTL UART I 2C (option) |
0~1,000 | ±10 | PM1.0/2.5/5/10 Numeric Display Long lifetime |
Inquiry
|
| SM-LS-05A (S/F) |
35×31×12 | 20 | 5 | 3.3V TTL UART I 2C (option) |
0~1,000 | ±10 | PM1.0/2.5/5/10 Numeric Display Long lifetime Compact size |
Inquiry
|

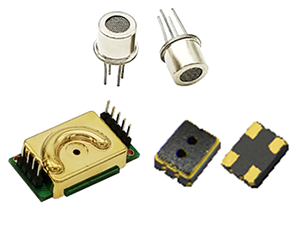

Gas sensor detects odors and harmful gases in daily life. Target gas : CO₂, TVOC, HCHO, Toluene, Acetone, H₂S, etc.
This sensor is available for your indoor Air care applications.
| Model | Size (mm) |
Weight (g) |
Supply Voltage (V) |
Target Gas |
Typical Detection Range |
Characteristic | Data Sheet |
|---|---|---|---|---|---|---|---|
| OGS-101A | 33×12.5×19.6 | 5.7 | 5 | CO2 | 1~5,000ppm | NDIR optical sensor Detection Resolution : 10ppm Dual type (wide detection range) |
Inquiry
|
| OGS-101B | 33×12.5×19.6 | 5.7 | 5 | TVOC | 1~10,000ppm | NDIR optical sensor Detection Resolution : 10ppm Dual type (wide detection range) |
Inquiry
|
| SGS-202A | 9Ø×17.5 | 1.1 | 5 | TVOC | 1~100ppm of Ethanol | MOS type Sensitivity : Rs (10ppm of Ethanol)/Rair ≒ 0.2 |
Inquiry
|
| OGS-101B-G | 49×32×17 | 13.5 | 5 | CO2 TVOC |
1~10,000ppm (CO2) 1~100ppm (TVOC) |
Compact size 5pin connect |
Inquiry
|

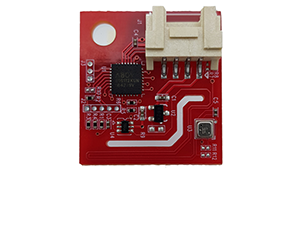

MGS-103A Multi Sensor Module is an integrated environment sensor developed specifically for IoT application where size and low-power consumption are key design constraints. Gas : VOC, CO2, Humidity, Temperature, Pressure
Indoor Air Quality Monitoring / Car Air Quality Monitoring / IoT Solution
| Model | Size (mm) |
Supply Voltage (V) |
Interface | Measurable Gas & Range | Data Sheet |
||||
|---|---|---|---|---|---|---|---|---|---|
| VOC | eCO2 | Humidity | Temperature | Pressure | |||||
| MGS-103A | 26×21×7 | 5 | I2C UART SPI |
0~500IAQ | Calculated by algorithm |
0~90%RH | 0~65℃ (±1.0℃) |
300~1,100hPa |
Inquiry
|
