miniHUB has the best density for Frame/Card Based systems on the market today. Compared to general 2RU system miniHUB can provide 32 reclocked point to point (P to P) 3G-SDI signals..
The miniHUB concept is the next generation for Optical video distribution. Norwia has developed a innovative platform that gives so many features that are currently not on the market today. Industry research and talking to the front line of broadcast intelligence with our own broadcast expertise to bring to market the miniHUB system.
The miniHUB system can bring immense cost saving to everyone, this covers all sectors of your business from purchase, to installation, to operational flexibility and maintenance simplicity. This enables your Total Cost of Ownership to be lower than others in the market.

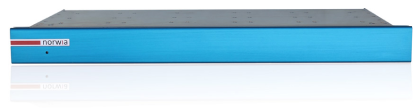

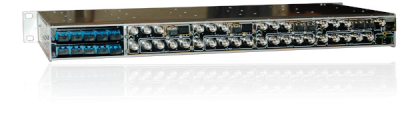

miniHUB is a 1 RU frame that houses pluggable cards for Optical video distribution. The miniHUB frame is a generation ahead of most frames on the market with some key improvements that make your life easier. Superbly engineered from back to front with attention to detail, the miniHUB frame is a rugged and quality system that will grow as your requirement increase. All this in a simple and cost effect way.
The OC-4B-SDI is the 1 card solution for Optical video distribution. It's the only solution on the market for Optical video distribution that has the AutoSFP® functionality that has been developed by Norwia. This technology raises the bar and gives the users a next generation product that is cost effective and lives up to Norwia tag line of "giving value".
Norwia's OC-4B-SDI can grow from 1 channel to 4 channels by simply plugging an SFP module. These SFP modules can be Transmit, Receive or Transceiver, single or dual channel. To make this possible, technologies like Norwia's Flexi I/O and AutoSFP® are employed to provide an intelligent automatic function that reconfigures the core Phabrix and enables the user more time to solve other pressing issues in their broadcast establishment.
The RCONmini frame controller card provides an extensive set of monitoring facilities for the miniHUB system.
There is no need to purchase this card as it is included with the initial frame purchase. The RCONmini has a feature rich set of tools that are available via a TCIP connection which would be normally seen as a premium product but with Norwia, it's included as standard.
EX-8B-422 is an expansion card intended to carry low-frequency signals such as tally or other GPI signals. It can also transport two independent RS-422 links.
EX-8B-422 cards are to be operated as pairs of cards. One EX-8B-422 is configured as an input card, while the other EX-8B-422 is configured as an output card. The card determines if it is an input or an output card based on where the ribbon cable is inserted.

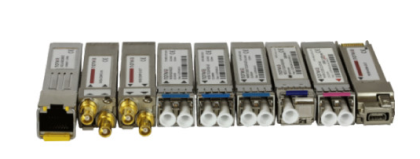

Norwia has a wide range of SFP's that have undergone extensive selection and testing procedures. Norwia SFP's are selected for their performance and price level to give the best possible solution for your critical applications. All Norwia SFP's have AutoSFP® technology built in.
All Norwia SFP's have passed a rigorous quality control process that includes measurement and documentation procedures to ensure quality standards that are at the highest possible levels.
Dual Channel Optical Receiver with AutoSFP® functionality for SMPTE 297-2006 Video applications.
Dual Channel Optical Transmitter with AutoSFP® functionality for SMPTE 297-2006 Video applications.
Dual Channel Optical Receiver with AutoSFP® functionality for SMPTE 297-2006 Video applications. This SFP is rated for short-haul applications.
Norwia's point to point system can be upgraded by just replacing the transmitter SFP's to CWDM SFP's plus the appropriate multiplexer. This has not been seen in the optical distribution market before!
The ease of use and flexible format features make the miniHUB platform the best choice for all advanced installations.
8 and 16 Channel CWDM Filter/Mux with Express port for Video and Data applications.
Ultra Low Loss 8 and 16 Channel CWDM Filter/Mux with Express port for Video and Data applications.
8 and 16 Channel Multi Mode CWDM Filter/Mux for Video and Data applications.
40 Channel DWDM Filter/Mux frame for Video and Data applications. Covers the ITU-T G.694 optical band.
