Korea

Specifications

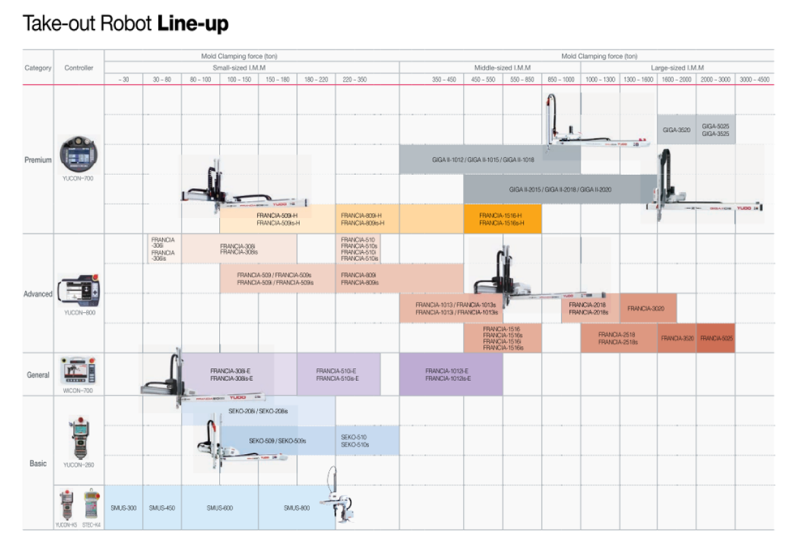

TAKEOUT ROBOTS MACHINE TONNAGE

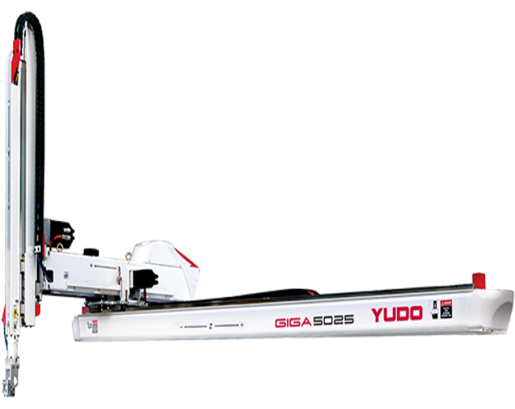

GIGA 1600~ 3000

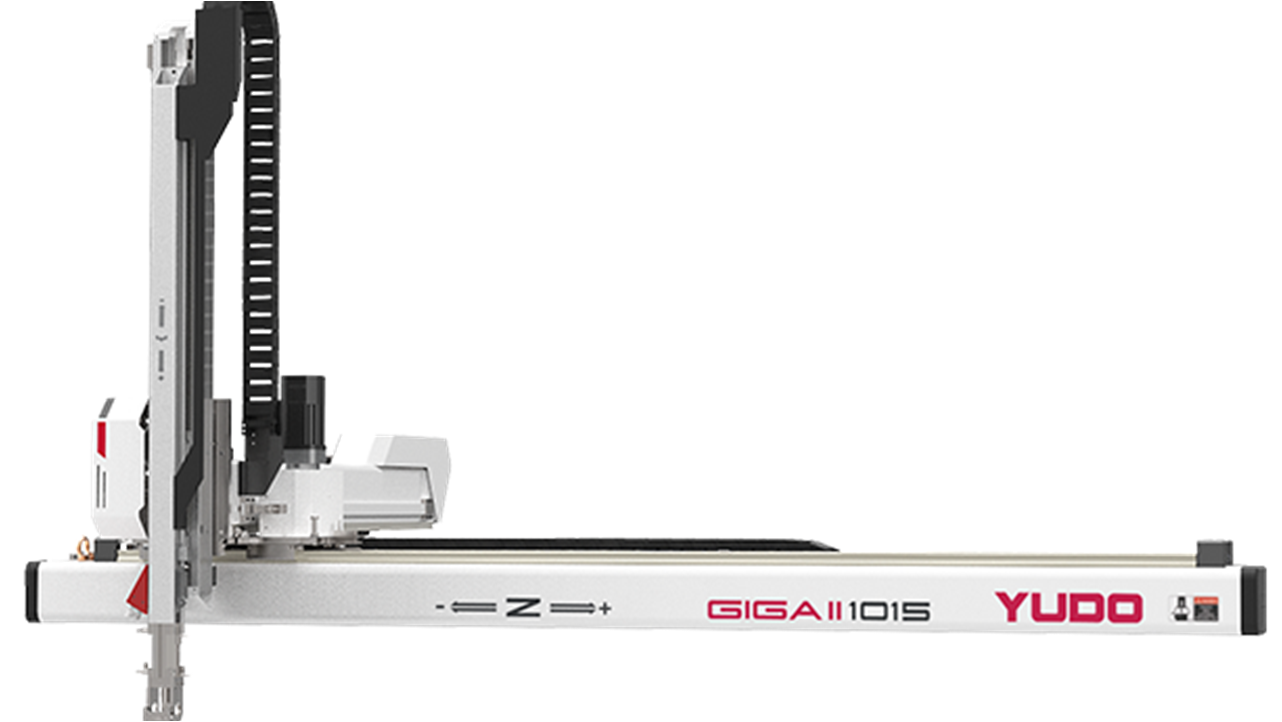

GIGA-|| 350~ 1600
GIGA 1600~ 3000

Specifications

TAKEOUT ROBOTS MACHINE TONNAGE
FRANCIA 50 ~ 3000

Specifications

TAKEOUT ROBOTS MACHINE TONNAGE
FRANCIA 80~ 550

Specifications

TAKEOUT ROBOTS MACHINE TONNAGE

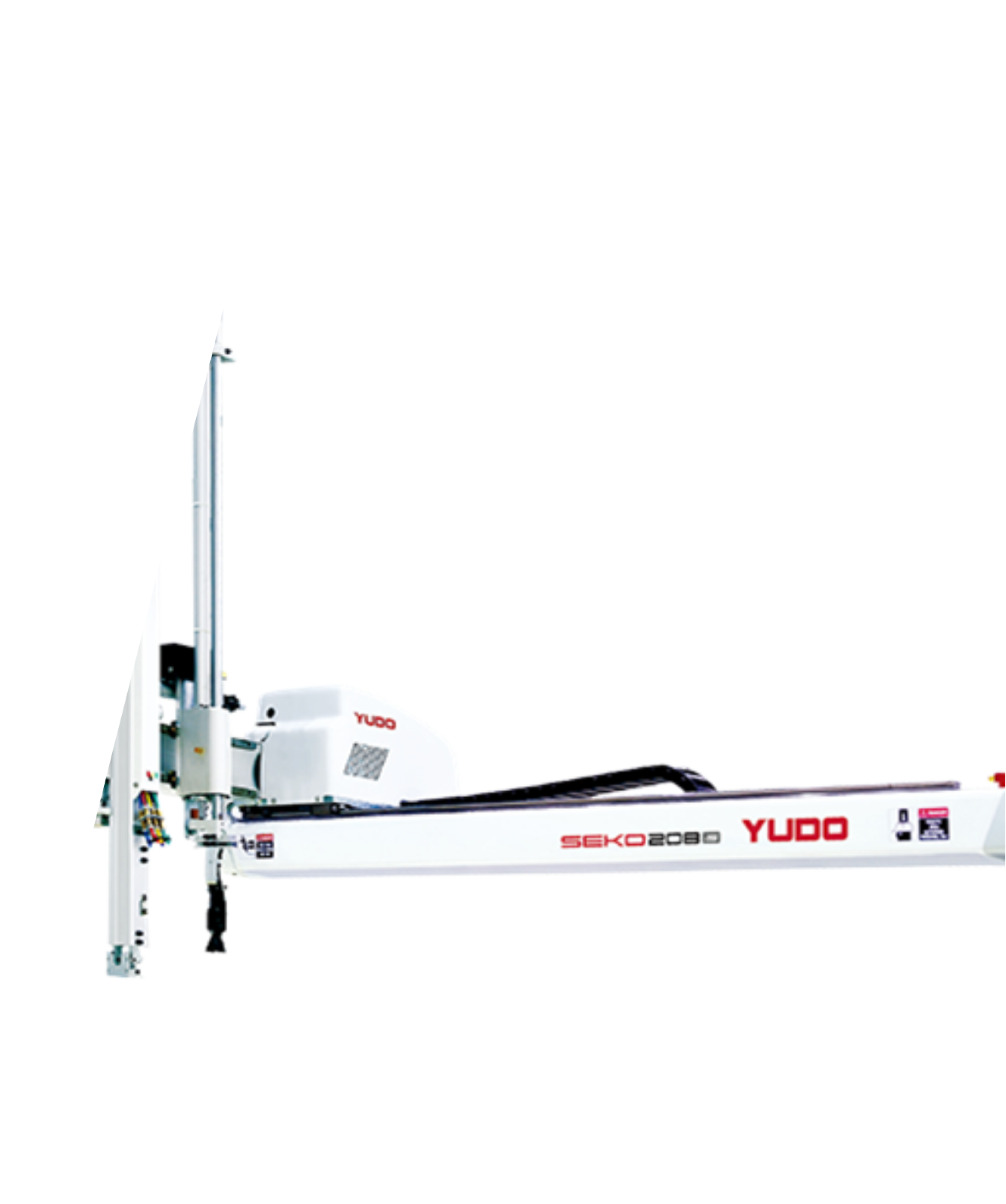

SEKO 80~ 350

Specifications

TAKEOUT ROBOTS MACHINE TONNAGE

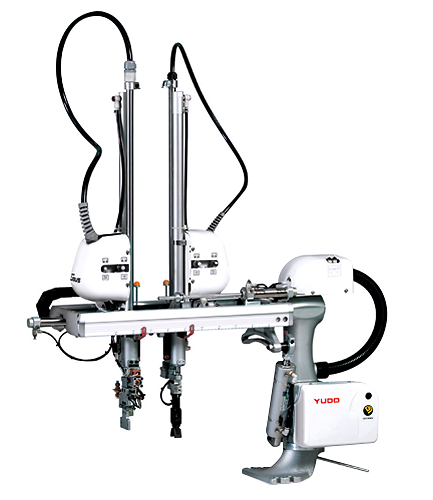

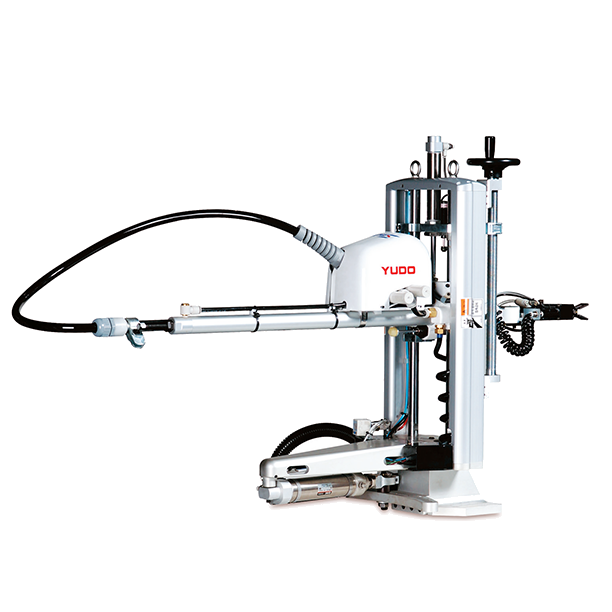

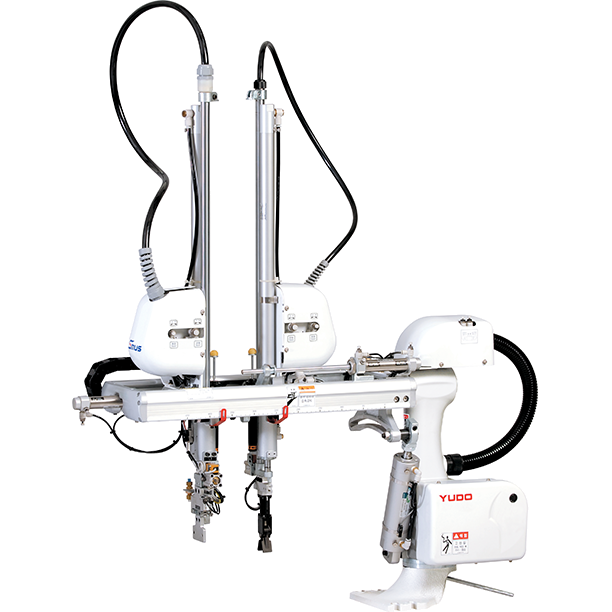

SMUS <30~220

Specifications

Imm Range 1600~3000
Traverse(mm) 3500~4000
Vertical(mm) 2000~3000
Driving Method Ac Servo
Payload 35/50
Power AC380V
Advantages
HIGH SPEEDTAKE OUT CYCLE TIME(SPEED UP MAX 40%)
SLIM BRIDGE STRUCTURE
SAFETY AND ENERGY SAVING FUNCTION.
  • SERVO SLEEP
  • POWER CONSUMPTION DISPLAY
USER FRIENDLY FUNCTIONS
  • SEND AN ALARM
  • MAINTENANCE INFORMATION

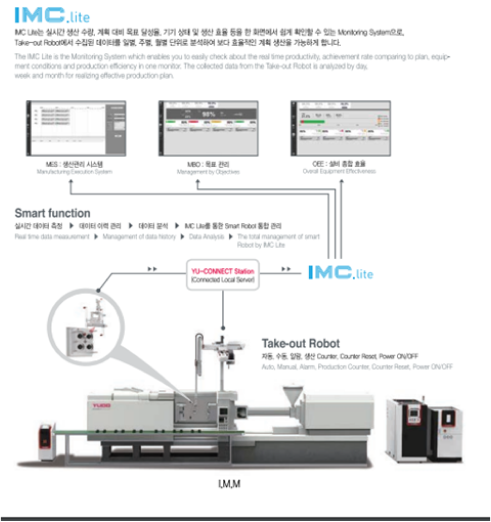

  • ROBOT MONITORING
  • HISTORY MANAGEMENT

Specifications

Imm Range 350~1600
Traverse(mm) 1600~2500
Vertical(mm) 1200~2000
Driving Method Ac Servo
Payload 10~20
Power AC380V
Advantages
HIGH SPEEDTAKE OUT CYCLE TIME(SPEED UP MAX 40%)
SLIM BRIDGE STRUCTURE
SAFETY AND ENERGY SAVING FUNCTION.
  • SERVO SLEEP
  • POWER CONSUMPTION DISPLAY
USER FRIENDLY FUNCTIONS
  • SEND AN ALARM
  • MAINTENANCE INFORMATION
  • ROBOT MONITORING
  • HISTORY MANAGEMENT

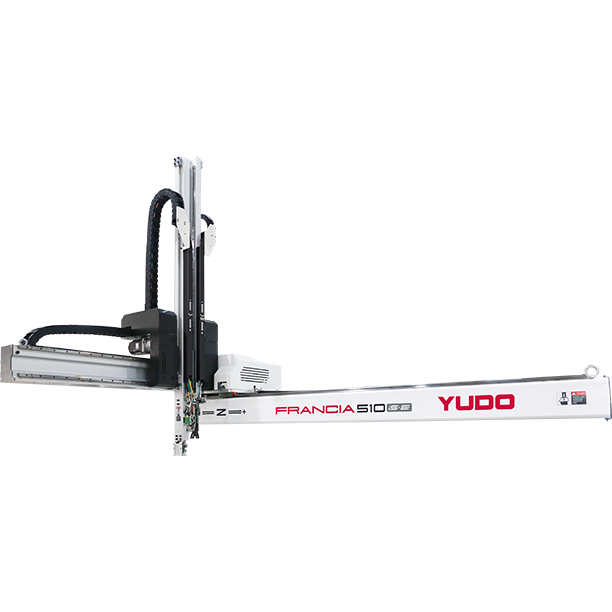

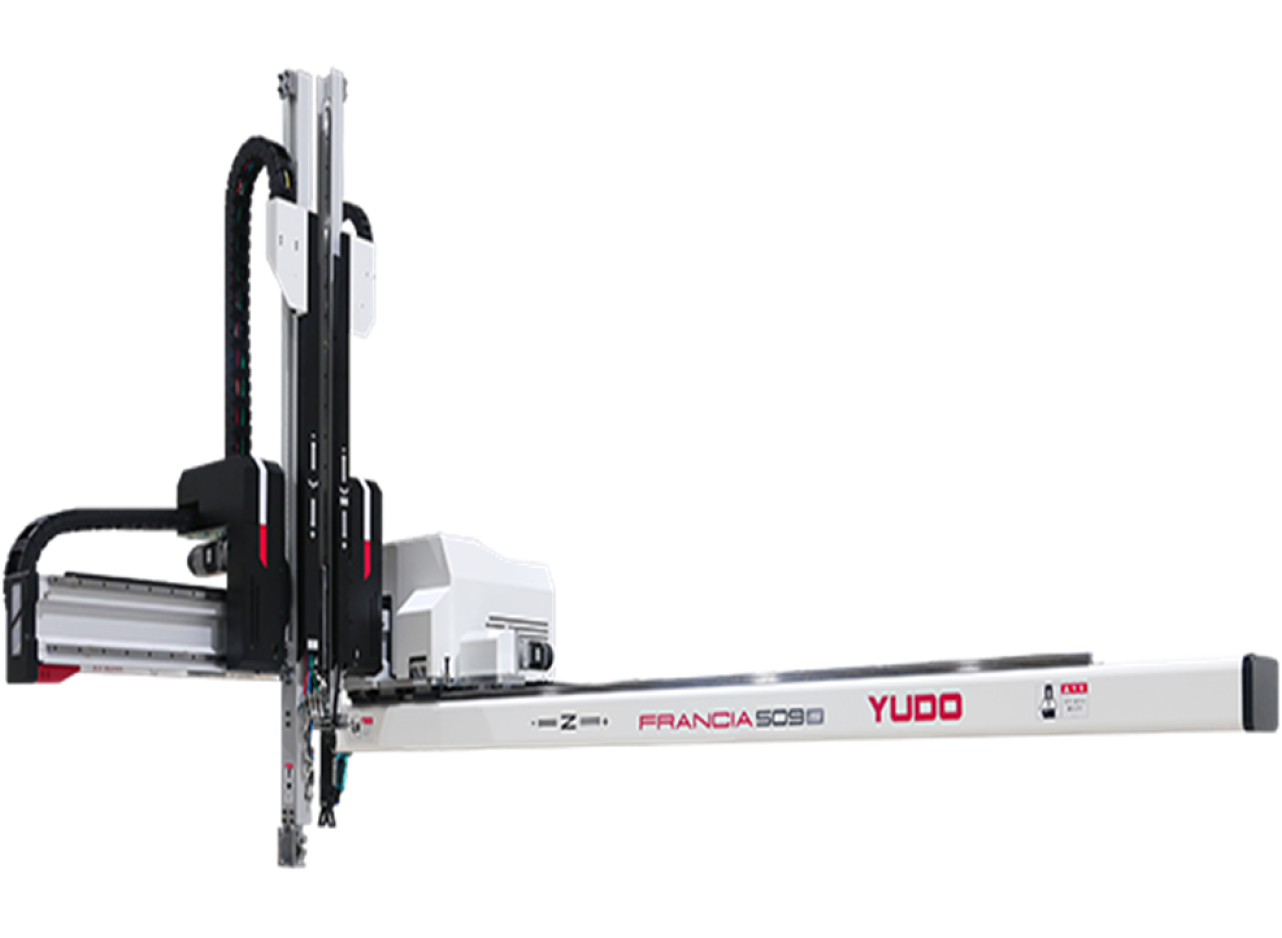

SPECIFICATIONS FRANCIA FRANCIA H FRANCIA E
MACHINE SIZE Any SIZED MACHINE Middle SIZED MACHINE Small SIZED MACHINE
IMM Tonnage 50~3000 100~850 80~550
Traverse(mm) 1000~4000 1600~2300 1400~1800
Vertical(mm) 600~2500 900~1600 800~1200
Driving Method Ac Servo Ac Servo Ac Servo
Payload 3~50 5~15 3~10

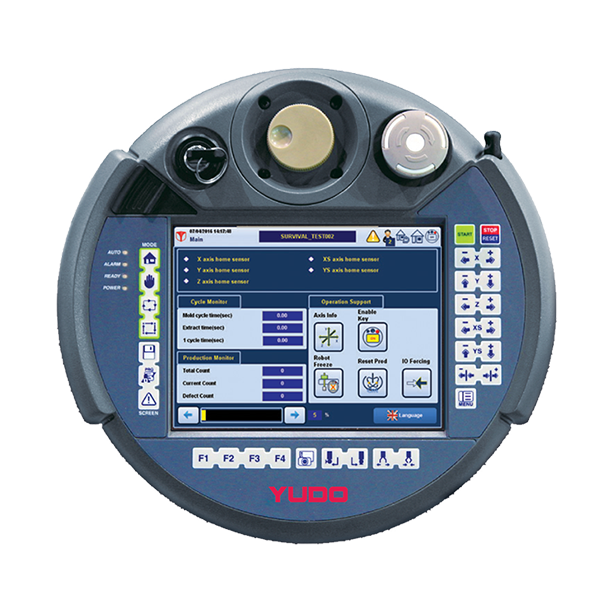

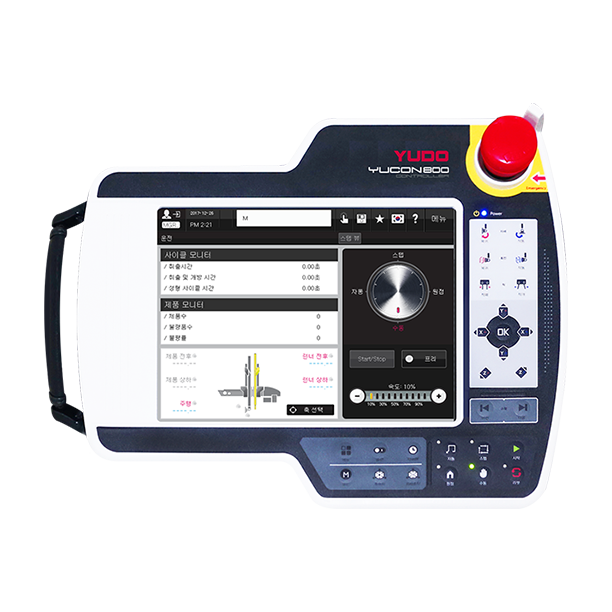

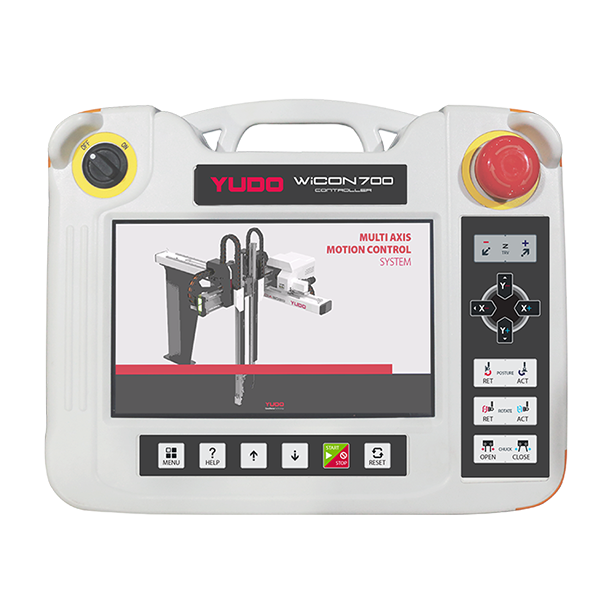

Controller YUCON-800 YUCON-700 WICON-700
Power AC 220V AC 380V AC 220V

Specifications

Imm Range 80~350
Traverse(mm) 1200~1600
Vertical(mm) 800~1000
Driving Method AC SERVO/AIR CYLINDER
Payload 2/5
Power AC220V
Advantages
LOW MAINTENANCE
OPTIMIZED DESIGN.
MAX SPEED 10%.

Specifications

Imm Range 350 ~ 550 (Horizontal I.M.M)
Traverse(mm) 1600
Vertical(mm) 1,200 (Telescopic arm)
Driving Method Vertical, Crosswise : Air Cylinder Traverse : AC Servo
Payload 10 (Including weight of chuck unit)
Power AC 220V, 50/60 Hz
