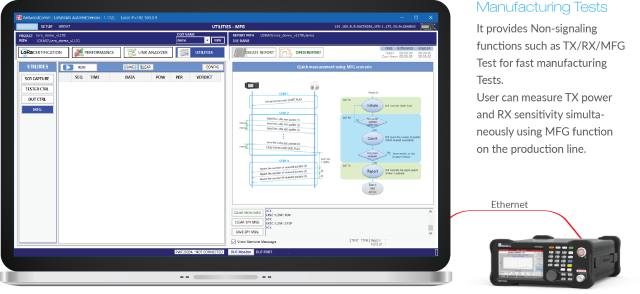

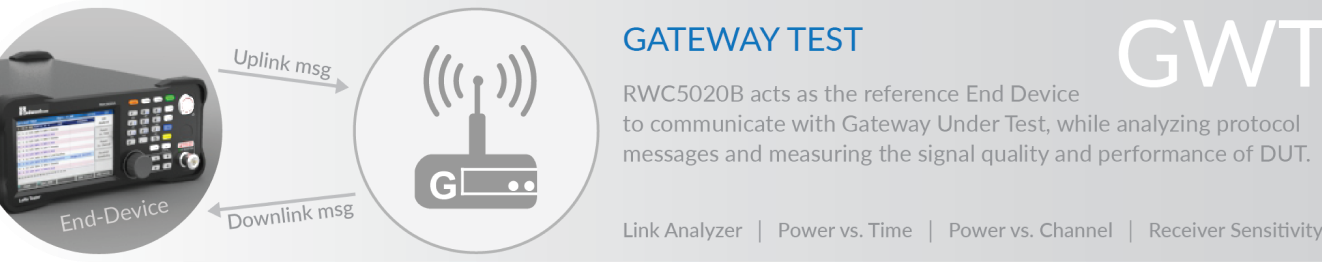

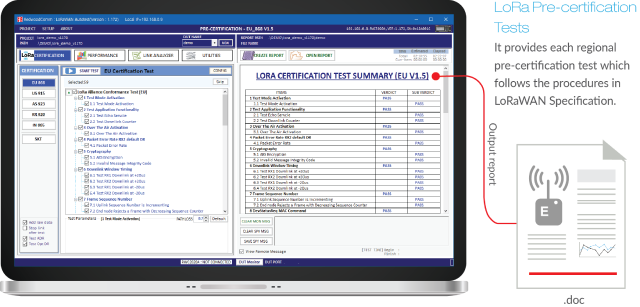

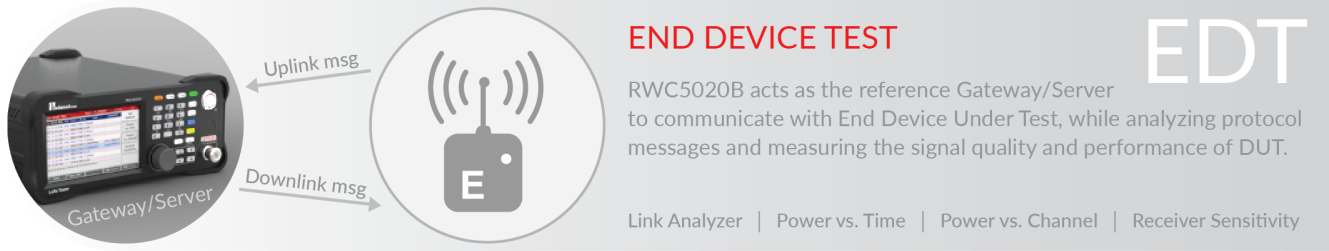

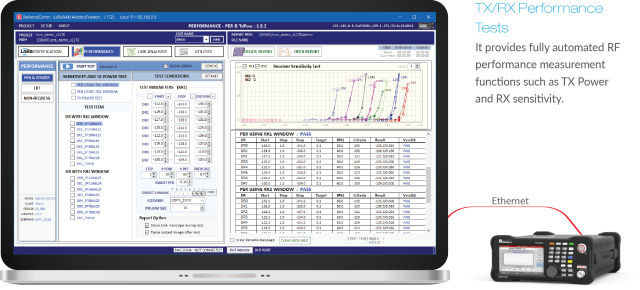

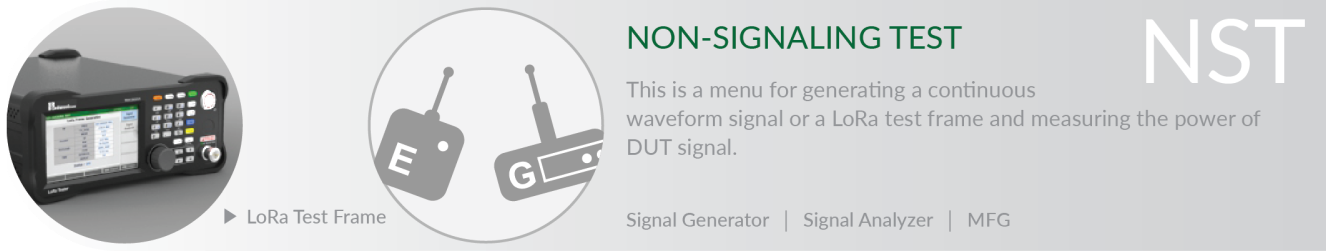

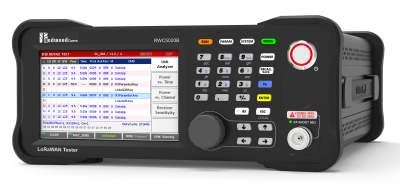

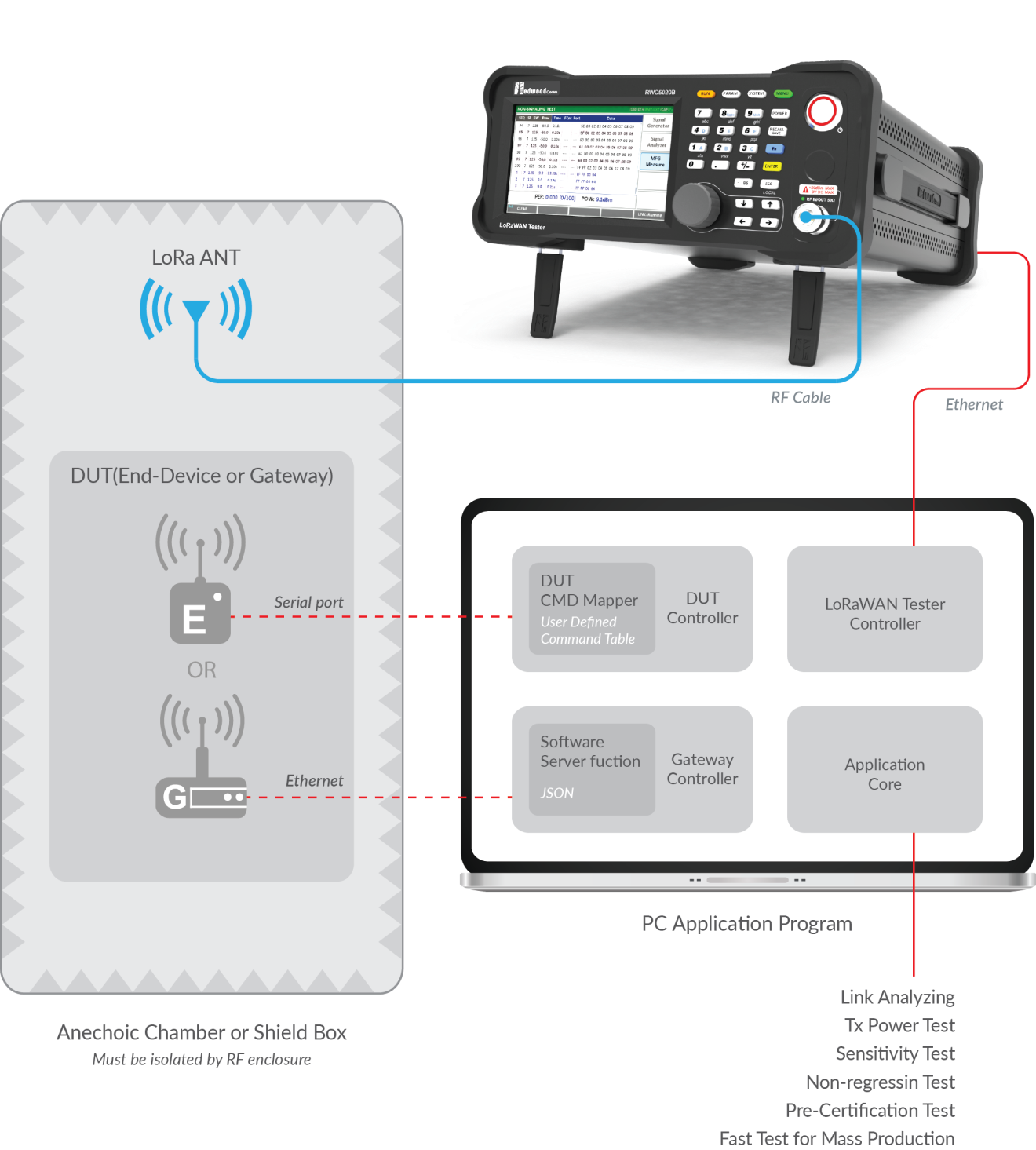

RWC5020B Tester for LoRa® / LoRaWAN​® is a compact all-in-one tester, providing a perfect solution for test and measurement of LoRa®​ and LoRaWAN®​ technology, which is fully suitable for R&D, QC, and manufacturers. It provides various test functions that can be performed in signaling mode, e.g. including activation procedures, as well as non-signaling mode. Automated PC software will help users test and debug their devices by performing pre-certification tests, as specified by LoRa Alliance®​.

Specifications

Frequency
Range: 400MHz ~ 510MHz, 862MHz ~ 960MHz
Resolution: 100Hz
Stability vs. +25℃: ±0.5ppm standard
Stability vs. Aging: ±1ppm/1st year
Output Level
Range: 0dBm ~ -150dBm
Resolution: 0.1dB
Accuracy: ±1dB
​Impedance: 50Ω
Input Level​
+30dBm ~ -80dBm for Power Measurement
+30dBm ~ -50dBm for Frequency Measurement
Measurement Accuracy​
±1dB for Power
±1KHz for Frequency (Single Tone)
VSWR
Better than 1:1.5​
External Frequency Reference
Frequency: 10MHz
Power Range: 0dBm ~ +20dBm
Remote Programming Ports
RJ45(Ethernet)
RS-232C
Miscellaneous
Operating temperature: 5 ~ 40℃
Line Voltage: 100 to 240 VAC, 50/60Hz
Dimension: 250(w) x 110(h) x 348(d) mm
Weight: 5kg
